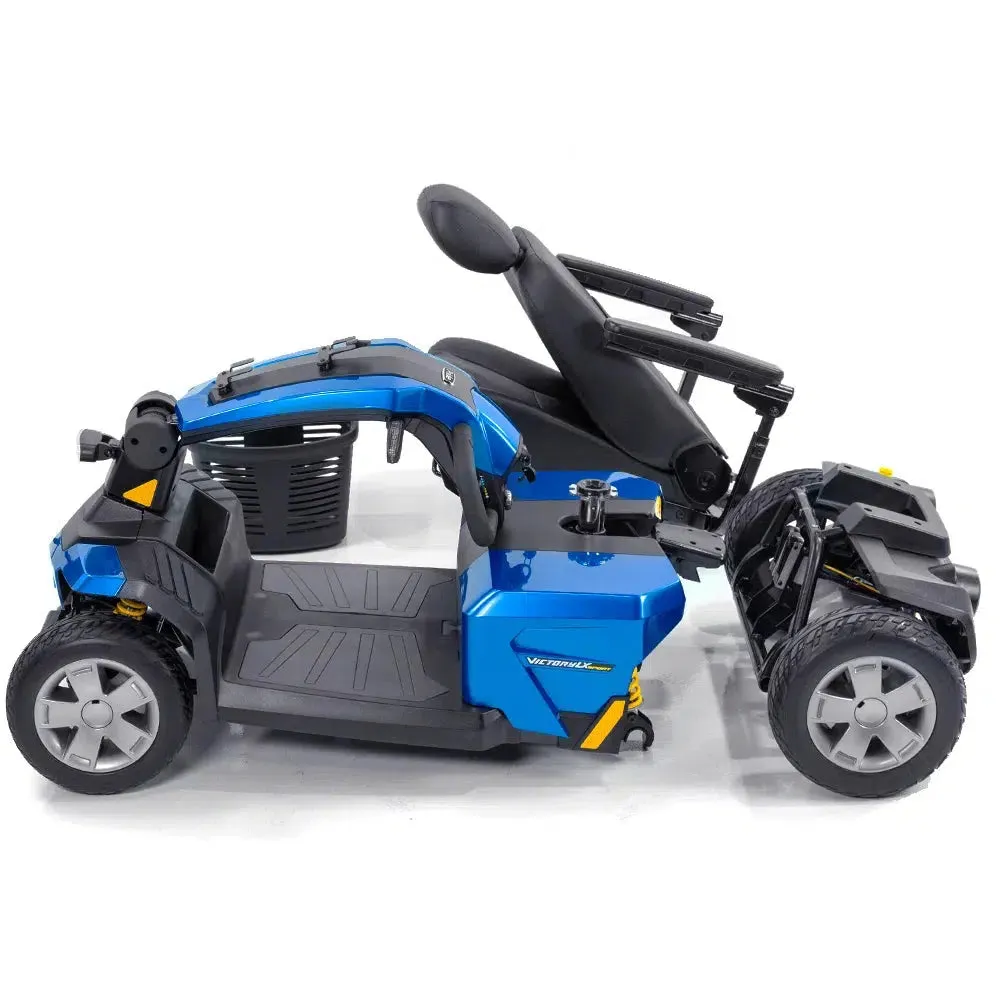

Experience a smooth, comfortable ride over rough surfaces and varied terrain with the Victory® 10 LX with CTS Suspension. The Victory® 10 LX with CTS Suspension offers a smooth ride with performance to match. Comfort-Trac Suspension (CTS) is the next generation in mobility scooter ride comfort. This industry first technology incorporates advanced suspension components for improved absorption over rough surfaces and a more comfortable ride experience over various terrains.
Victory® 10 LX with CTS Suspension Features:
- Comfort-Trac front and rear suspension
- Exclusive one-hand feather touch disassembly provides the ultimate quick transport system
- Delta tiller with wraparound handles
- Easy-to-read LED battery meter
- Exclusive stylish, lightweight, non scuffing, black, low-profile tires
- Long-lasting, high-intensity LED headlight offers optimal pathway illumination with a courtesy light under tiller
- Black vinyl reclining high-back seat with sliders, height adjustable headrest, flip-up, height and width adjustable armrests
- Storage compartment below tiller
- Easy-grip tiller adjustment knob
- Easy access tiller-mounted charger port
- 40AH batteries
- Flat-Free Tires
Victory® 10 LX with CTS Suspension 4-Wheel Specifications:
| Model | Victory 10 LX with CTS Suspension |
| Model Number | S710LX |
| Front Tires | 3.5" x 10" Solid |
| Rear Tires | 3.5" x 10" Solid |
| Maximum Speed* | Up to 5.6 mph |
| Ground Clearance | 2.4" at transaxle, 0.9" at anti-tip, 2.9" at front frame |
| Turning Radius** | 60" |
| Overall Length** | 47" |
| Overall Width of Base** | 22.25" |
| Seat-to-Ground Height Range | 23.5"-25.5" |
| Seat Type | Reclining High-back with sliders & headrest (18x18) |
| Weight** | 179 lbs. |
| Seat-to-Deck Height Range | 16.5"-18.5” |
| Battery Weight | 32 lbs. each |
| Battery Requirements | (2)40AH |
| Maximum Range Per Charge* | Up to 16 miles |
| Battery Charger | Off-board, 5A |
| Suspension | Front and Rear |
| Maximum Weight Capacity | 400 lbs. |
| Standard Body Colors | Candy Apple Red, True Blue |
| Weight of Heaviest Piece** | 78 lbs. (Front section) |
| Warranty | Lifetime limited on frame; 2-Year limited on Electronics; 2-Year limited on Drivetrain |
